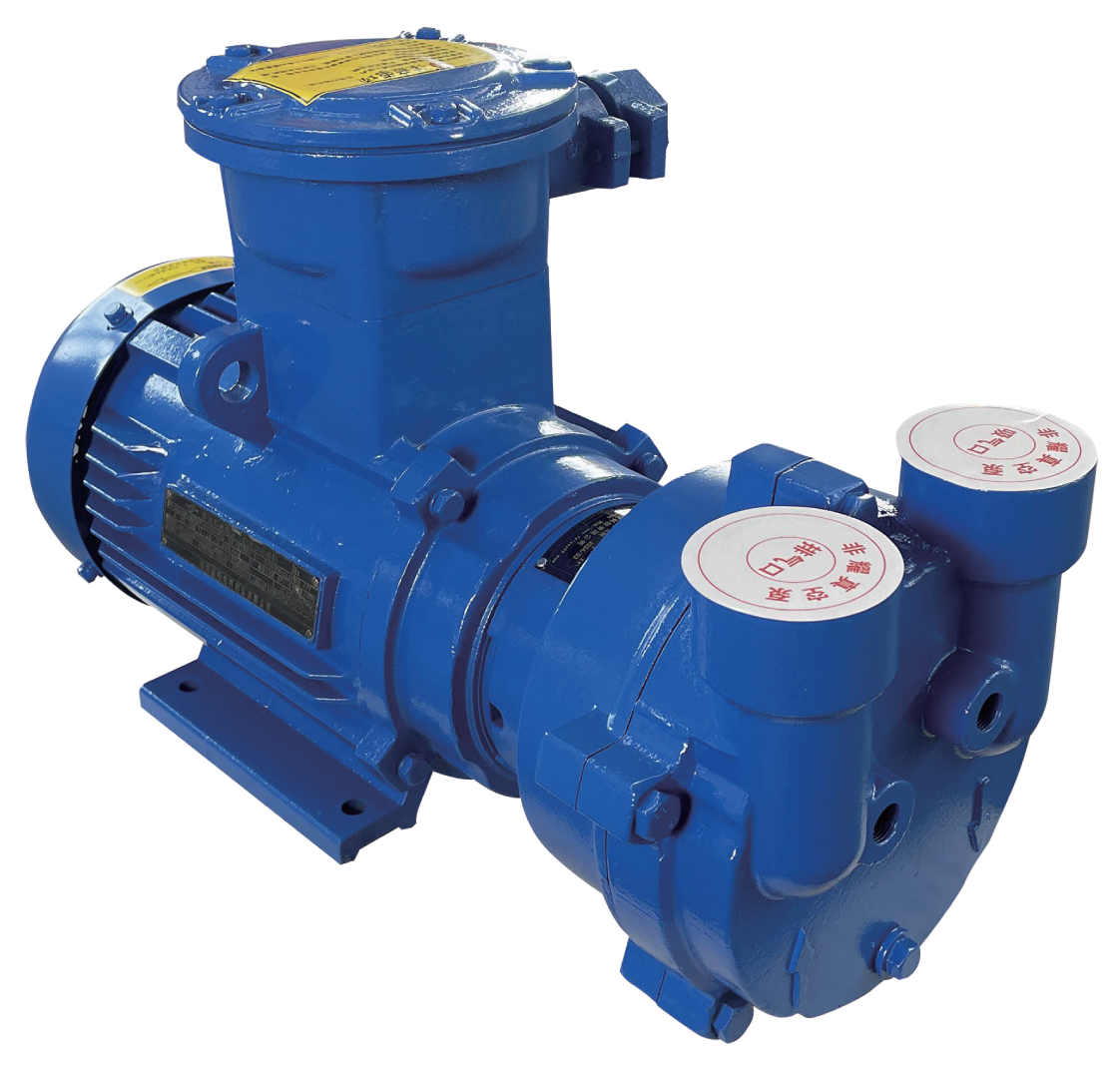

2BV Water Ring Vacuum Pump
The 2BV series water ring vacuum pump is a high-efficiency vacuum equipment widely used in chemical, pharmaceutical, food processing, and other industries. Featuring compact design, energy-efficient operation, and reliable performance, the 2BV pump is an ideal choice for processes requiring vacuum levels between 33-1013 mbar.
Key Features
- Compact structure with integrated motor design
- Energy-efficient operation with low maintenance costs
- Corrosion-resistant materials for harsh environments
- Quiet operation suitable for indoor installations
- Easy installation and maintenance
- ISO 9001 and CE certified quality
Technical Specifications
| Model Range | 2BV5, 2BV2, 2BV6 |
| Pumping Capacity | 0.25 - 40 m³/min |
| Ultimate Vacuum | 33 mbar (abs) |
| Working Pressure | 33 - 1013 mbar |
| Motor Power | 0.75 - 75 kW |
| Voltage/Frequency | 380V/50Hz, 400V/50Hz, 440V/60Hz |
| Inlet/Outlet | DN25 - DN150 |
| Cooling Water | Required (closed or open loop) |
Applications
Chemical Industry: Distillation, crystallization, filtration
Pharmaceutical Industry: Vacuum drying, freeze drying
Food Processing: Packaging, degassing, concentration
Paper & Pulp: De-watering, filtration processes
Environmental: Vacuum filtration in wastewater treatment
